High efficiency resin separation for mixed bed polishers

Conesep®

Conesep provides unsurpassed separation and regeneration of mixed bed ion exchange resins, achieving the highest quality treated condensate. It is typically used on power station condensate polishing plants that have multiple large service vessels and a central resin regeneration facility.

Conesep offers automatic, guaranteed separation of cation and anion resins, which allows the mixed bed to operate beyond the ammonia breakpoint, increasing run length and reducing operating costs.

Conesep has a unique resin separation and detection system that allows cation and anion resins to be separated reliably and automatically without manual intervention. Separation is achieved regardless of the resin volumes, allowing for resin ratios to be adjusted without compromising performance.

Unbeatable resin separation

Resin separation is key to good quality water production by reducing the cross contamination of resin during the resin regeneration process. Conesep has a unique resin interface detection system offering the best possible level of resin separation prior to regeneration. This prevents dissolved ions leaking into the treated water after regeneration, allowing operation of the resin past the ammonia break point. The Conesep system also removes suspended solids that have been trapped in the resin during service.

Conesep has a range of benefits that put this product ahead of the competition, such as:

  • Reduced operating costs, by allowing ammonia form operation
  • Improved resin cleaning using a combination of air scour and rinsing
  • Robust proven design, maximising plant uptime
  • Fully automated and automatically adjusts for variable resin volume

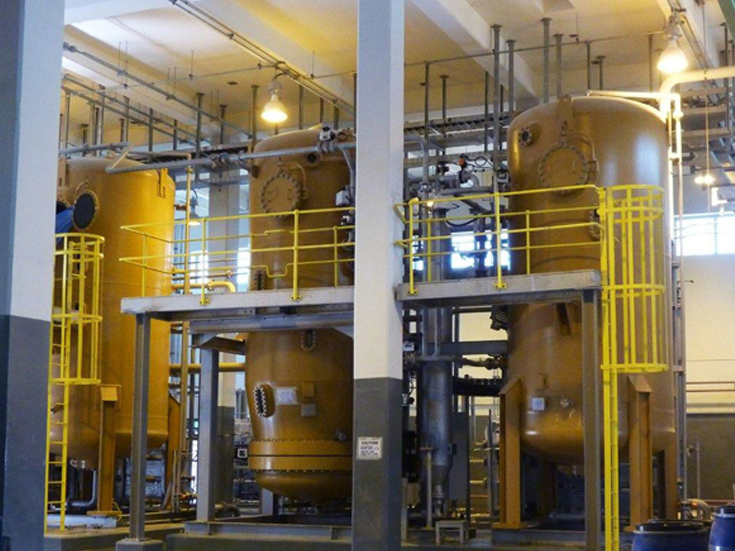

Conesep external resin separation and regeneration

The Conesep module consists of two main vessels along with all the associated pipe work, valves, controls and instrumentation.

The system comprises:

  • Separation/anion regeneration unit
  • Cation regeneration/mix and hold unit
  • Interface resin isolation pot

Resin from the mixed bed service vessel is transferred, using water, to the Conesep system and enters the separation/anion regeneration vessel. The resin is retained in the vessel and supported on an epoxy-bonded sand matrix at the base, into which is set a collection/distribution lateral system. This matrix retains the resin while allowing a flow of air or liquid to pass.

The unique conical shape of the vessel along with the upward flow of water separates the resins with the cation resin accumulating at the base of the vessel and the anion resin migrating above. The cation resin at the base is then moved to the cation regeneration/mix and hold vessel. When the interface is detected, the resin transfer is stopped.

Resins in both vessels are then regenerated and rinsed before the anion resin is transferred to the cation regeneration/mix and hold vessel. The two resins are mixed and rinsed to quality before returning to the service mixed bed for use.

Conesep offers a range of technical features and benefits for your plant, including:

  • Extremely low resin cross contamination < 0.06% anion resin in cation resin
  • Operational savings from operating in ammonium form
  • Effective resin cleaning to remove solids trapped in the resin bed
  • Modular skidded designs
  • Retrofitting to existing plants
  • opsCTRL™ enabled to allow remote digital monitoring and diagnostics from mobile phone, tablet or PC

Our Ovivo team works closely with all partners to assist with their resin regeneration needs by providing:

  • Feed studies
  • Life cycle cost analysis
  • Full design build support
  • Process optimisation
  • Refurbishments and upgrades
